TRENDnet TI-PGM5415-port Conmutador industrial Gigabit PoE de carril DIN

Brand: TRENDnet
N.º ADI #:TI-PGM541 modelo #: TI-PGM541  Nombre: TRENDnet TI-PGM5415-port Industrial Gigabit PoE+ DIN-Rail Switch

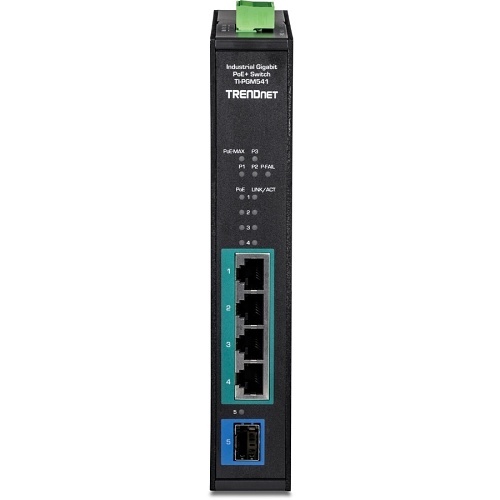

  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit SFP slot
  • 120W PoE power budget

Características Físicas

Altura
28 mm
Anchura
130 mm
Formato
DIN Rail Mount, Montaje de pared
Material
Metálico
Peso (Aproximado)
0,67 kg
Profundidad
180 mm

Certificaciones

Conforme con normas TAA
Marcado CE
Compliant

Descripción de la Alimentación

Budget PoE
120W
Frecuencia
50 Hz|60 Hz
Fuente de alimentación redundante admitido
Fuente de Corriente
Fuente de alimentación
Puerto PoE (RJ-45)

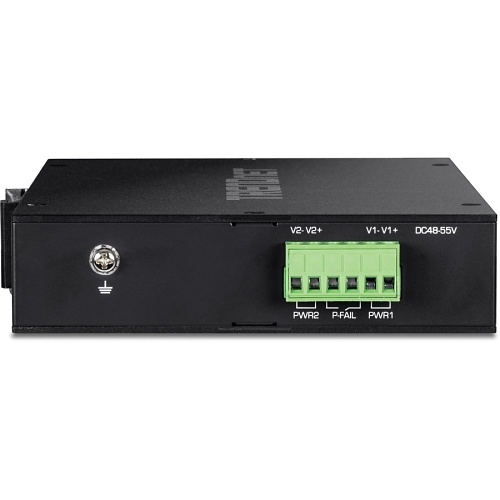

Tipo de Conector/Enchufe
Bloque terminal
Voltaje de Entrada
48V DC, 55V DC

Expansiones E/S

Número de la SFP ranuras
1
Número de la SFP+ ranuras
1
Número Total de Ranuras de Expansión
1
Tipo de Ranura de Expansión
SFP

Formato / Prestaciones

Tecnología de Red
1000Base-FX, 1000Base-T

Garantía

Garantía limitada
Lifetime

Interfaces/Puertos

Detalles de Ranura de Expansión/Puerto
5 x Gigabit Ethernet Network
Número Total de Puertos de Red
5
Red (RJ-45)

Redes y Comunicaciones

Compatibilidad con nivel
2
Estándares de redes
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Tecnología Ethernet
Gigabit Ethernet

Varios

Características
1 x Gigabit SFP slot, 10Gbps switching capacity, 120W PoE power budget, 4 x Gigabit PoE ports, Alarm output triggered by power failure, Hardened IP30 rated metal switch, Includes DIN-Rail and wall mounts, Operating temperature range of -20 to 65 deg C (-4 to 149 deg F), Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048), Redundant power inputs with overload current protection
Certificación medioambiental
CE, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, LVD
Contenido de la Caja
  • TI-PGM541
  • Quick Installation Guide
  • Removable terminal block
